NEC NL8060BC26-27 10.4 inch IPS LCM 800×600 400nits CCFL TTL 41pins

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

NEC NL8060BC26-27 10.4 inch IPS LCM 800×600 400nits CCFL TTL 41pins

Brand Name : For Apple,For Samsung,For Asus,For Huawei,For Acer,For Amazon Kindle,Universal,Other

Model Number : NL8060BC26-27

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : T/T, Western Union,paypal

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Series : NL8060BC26-27

Keywords Desc. : NLT 10.4" IPS LCM 800×600 400nits CCFL TTL 41pins

Product Class : Graphic LCD Display

Product Tags : Color TFT-LCD,Transmissive LCD,IPS LCD

Application : Industrial Application

Panel Type : a-Si TFT-LCD

Panel Composition : LCM

Panel Size : 10.4"

Resolution : 800×600

Aspect Ratio : 4:3 (W:H)

Form Factor : Flat Rectangle Display

Orientation : Landscape type

Active Area : 211.2 (W) × 158.4 (H) mm (A.A)

Viewing Area : 215.4 (W) × 161.8 (H) mm (V.A)

Outline Dimension : 243 (W) × 185.1 (H) mm

Max. Depth : 11 mm

Weight : 475/500g (Typ./Max.)

LC Family : IPS Family

Polarizer : Transmissive

Brightness : 400 (Typ.)

Contact Now

NEC NL8060BC26-27 10.4 inch IPS LCM 800×600 400nits CCFL TTL 41pins

NL8060BC26-27 Main Parameters

Panel Brand : NEC
Panel Model : NL8060BC26-27
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : SA-SFT, Normally Black, Transmissive
Active Area : 211.2×158.4 mm
Outline : 243×185.1×11 mm
Surface : Clear, Hard coating (3H)
Brightness : 400 cd/m2 (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 25/25 (Typ.)(Tr/Td)
Viewing Angle : 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : CMOS (1 ch, 6-bit) , 41 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC)

NEC NL8060BC26-27 Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 475/500g (Typ./Max.)
Surface : Clear, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 243×185.1 mm (H×V)
Outline Depth : 10.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75)
Landscape or Portrait : Landscape type
Touch Panel : Without

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED043WC1 E Ink 4.3" 480×800
ED043WC3 E Ink 4.3" 480×800
ED060XD6 E Ink 6.0" 758×1024
SMA058HRG1 E Ink 5.8" 600×448
SMA058H7G1 E Ink 5.8" 600×448
ED035OC1 E Ink 3.5" 360×600

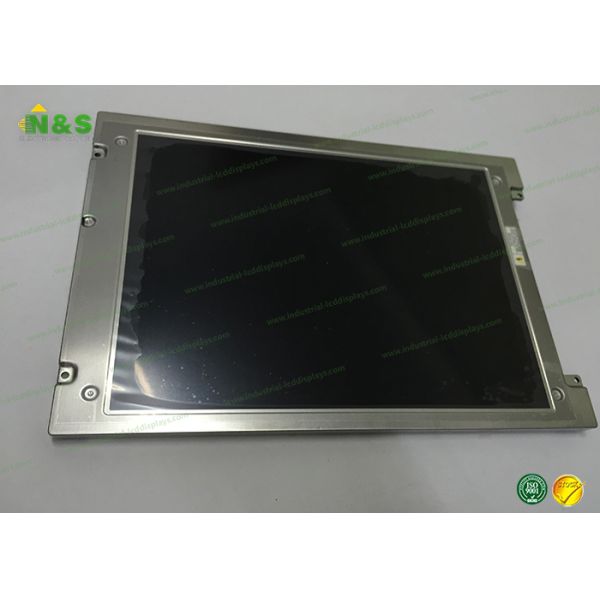

NL8060BC26-27 Picture
